Installation [12/2024 - ]: Procedure

  1. INSTALL ECO RUN VEHICLE CONVERTER ASSEMBLY

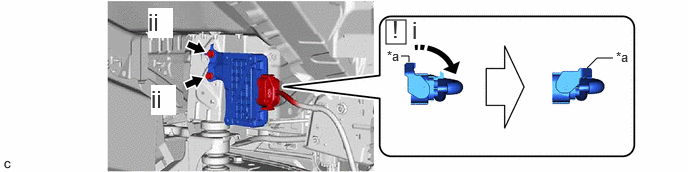

    1. GTY1272721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Lock Lever - -
      Pull Down the Lock Lever - -
      1. Connect the eco run vehicle converter assembly connector and move the lock lever as shown in the illustration to lock it.
      2. Install the eco run vehicle converter assembly with the 2 bolts.
  2. INSTALL FRONT FENDER LINER RH

    Refer to REASSEMBLY [12/2024 - ]
