Removal [12/2023 - ]: Procedure

  1. REMOVE FRONT FENDER LINER RH

    Refer to PROCEDURE - Step 6

  2. REMOVE ECO RUN VEHICLE CONVERTER ASSEMBLY

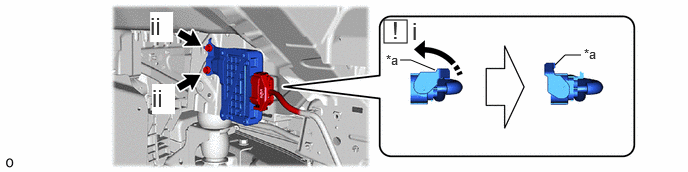

    1. GTY1183016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Lock Lever - -
      Pull Up the Lock Lever - -
      1. Move the lock lever as shown in the illustration and disconnect the eco run vehicle converter assembly connector.
      2. Remove the 2 bolts and eco run vehicle converter assembly.
  3. REMOVE NO. 1 CONVERTER CONTROL BRACKET
    1. GTY1185014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
