On-Vehicle Inspection [12/2022 - ]: Procedure

  1. REMOVE CAM TIMING OIL CONTROL SOLENOID ASSEMBLY

    HINT:

    Refer to REMOVAL [12/2022 - 03/2023] , or refer to REMOVAL [03/2023 - ]

  2. INSPECT CAMSHAFT TIMING VALVE ASSEMBLY
    1. Check the stroke of the plunger in the center of the camshaft timing valve assembly.

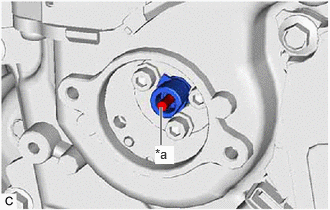

      GTY1158664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Plunger

      Standard Stroke

      Specified Condition Result
      2.2 mm or higher
      0.0866 in. or higher      		 mm
      in.

      If the result is not as specified, replace the camshaft timing valve assembly.

  3. INSTALL CAM TIMING OIL CONTROL SOLENOID ASSEMBLY

    HINT:

    Refer to INSTALLATION [12/2022 - 03/2023] , or refer to INSTALLATION [03/2023 - ]
