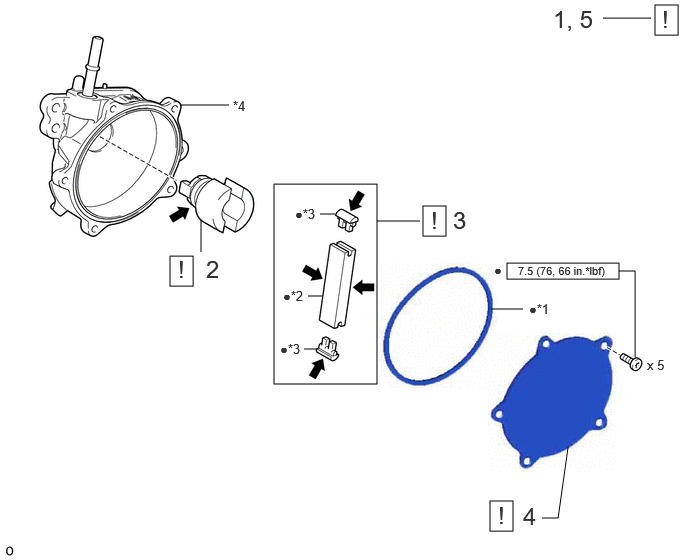

COMPONENTS (REASSEMBLY)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | CLEAN VACUUM PUMP HOUSING | - | See step 1 | - | - |
| 2 | VACUUM PUMP ROTOR | - | See step 2 | - | - |
| 3 | VACUUM PUMP VANE AND VACUUM PUMP VANE CAP | - | See step 3 | - | - |
| 4 | END COVER | 29314A | See step 4 | - | - |
| 5 | INSPECT VACUUM PUMP ASSEMBLY | - | See step 5 | - | - |
| *1 | VACUUM PUMP COVER O-RING | *2 | VACUUM PUMP VANE |
| *3 | VACUUM PUMP VANE CAP | *4 | VACUUM PUMP HOUSING |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| Engine oil | - | - |
