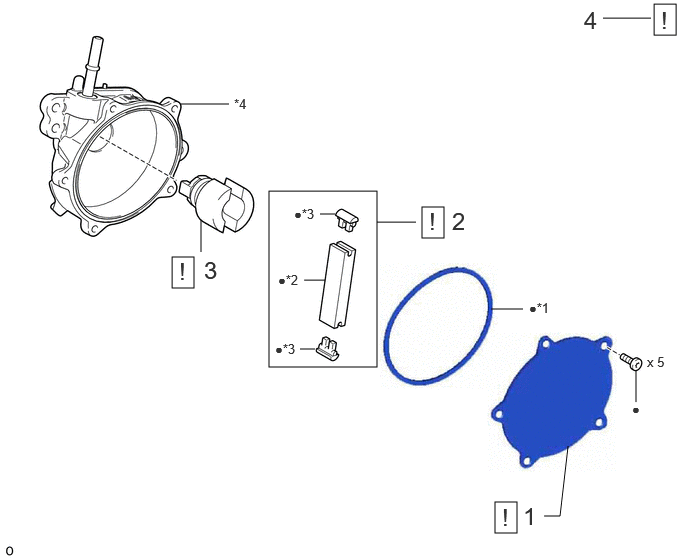

COMPONENTS (DISASSEMBLY)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | END COVER | 29314A | See step 1 | - | - |
| 2 | VACUUM PUMP VANE AND VACUUM PUMP VANE CAP | - | See step 2 | - | - |
| 3 | VACUUM PUMP ROTOR | - | See step 3 | - | - |
| 4 | INSPECT VACUUM PUMP HOUSING | - | See step 4 | - | - |
| *1 | VACUUM PUMP COVER O-RING | *2 | VACUUM PUMP VANE |
| *3 | VACUUM PUMP VANE CAP | *4 | VACUUM PUMP HOUSING |
| • | Non-reusable part | - | - |
