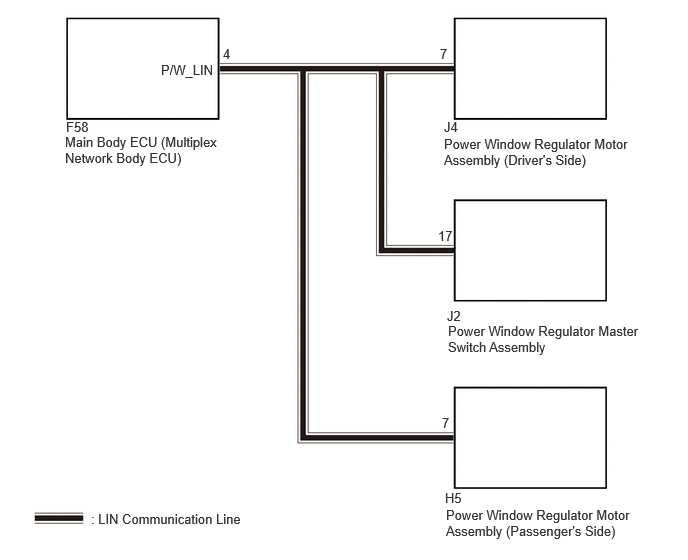

DTC U1674: LIN Communication Bus 2 Error Body Control Module [11/2021 - ]: Wiring Diagram

GTY1158958

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
