Caution / Notice / Hint

NOTE:

This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

COMPONENTS (REMOVAL)

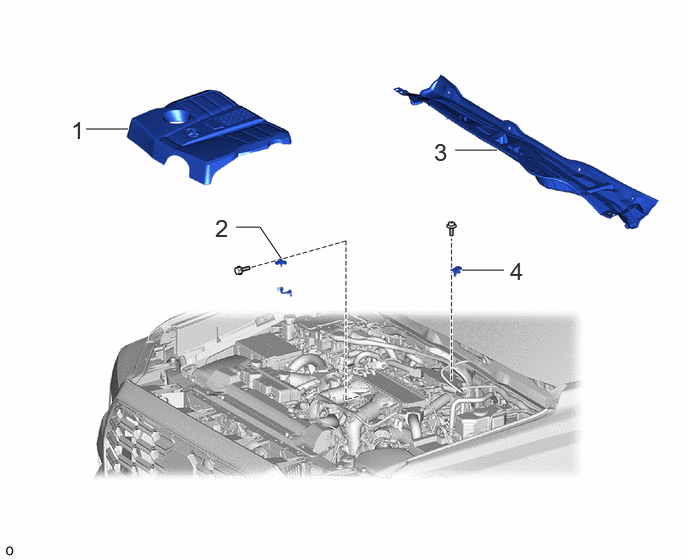

Fig 1: Manifold Absolute Pressure Sensor Removal Components

Procedure		Part Name Code
1	V-BANK COVER SUB-ASSEMBLY	11209	-	-	-
2	NO. 2 TURBO PRESSURE SENSOR	89421L	-	-	-
3	OUTER COWL TOP PANEL SUB-ASSEMBLY	55701J	-	-	-
4	NO. 1 TURBO PRESSURE SENSOR	89421K	-	-	-
