Caution / Notice / Hint
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during knock control sensor removal/installation are shown below.
NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
| Knock control sensor Direct fuel injector assembly |
Inspection after repair |
|
Refer to INITIALIZATION [09/2022 - 09/2024] , or refer to INITIALIZATION [09/2024 - ] |
HINT:
When the cable is disconnected/reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
- Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Pre-collision system Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more. Refer to INITIALIZATION [09/2022 - ] Lane tracing assist system - Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Air conditioning system After the ignition switch is turned to ON, the servo motor and expansion valve standard position is recognized. - Power back door system Fully close the back door by hand.
HINT:
Initialization is not necessary if the above procedures are performed while the back door is closed.Refer to INITIALIZATION [09/2022 - ] Power running board system After turning the ignition switch to ON, opening the door, and then fully deploying the power running board system, close the door and stow the power running board system. Refer to INITIALIZATION [09/2022 - ]
NOTE:
This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.
Refer to PRECAUTION [09/2022 - ]

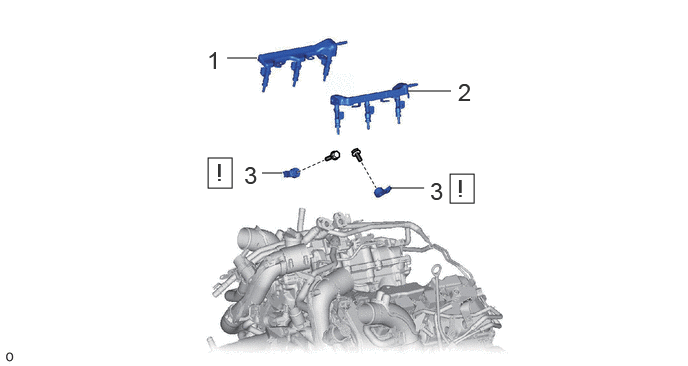

COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | NO. 2 FUEL DELIVERY PIPE SUB-ASSEMBLY RH | 23807M | - | - | - |
| 2 | NO. 2 FUEL DELIVERY PIPE SUB-ASSEMBLY LH | 23808B | - | - | - |
| 3 | KNOCK CONTROL SENSOR | 89615 | See step 3 | - | - |
