Caution / Notice / Hint
NOTE:
This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.
Refer to PRECAUTION [12/2022 - 03/2023] , or refer to PRECAUTION [03/2023 - ]

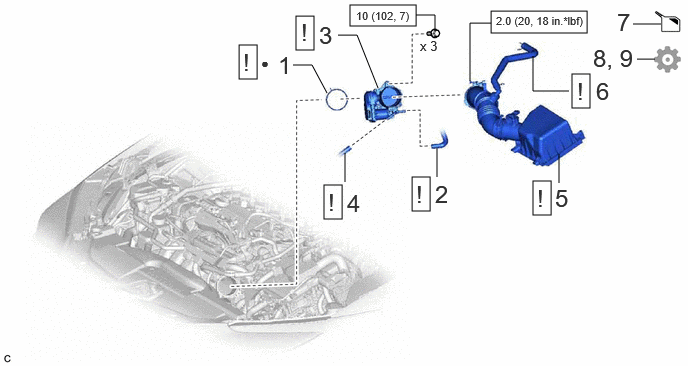

COMPONENTS (INSTALLATION)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | THROTTLE BODY GASKET | 22271 | See step 1 | - | - |
| 2 | NO. 8 WATER BY-PASS HOSE | 16296 | See step 2 | - | - |
| 3 | THROTTLE BODY WITH MOTOR ASSEMBLY | 22030 | See step 3 | - | - |
| 4 | NO. 5 WATER BY-PASS HOSE | 16282 | See step 4 | - | - |
| 5 | AIR CLEANER CAP WITH AIR CLEANER HOSE | - | See step 5 | - | - |
| 6 | NO. 2 VENTILATION HOSE | 12262 | See step 6 | - | - |
| 7 | ADD ENGINE COOLANT (for Engine) | - | - | See step 7 | - |
| 8 | INSPECT FOR COOLANT LEAK (for Engine) | - | - | - | See step 8 |
| 9 | PERFORM INITIALIZATION | - | - | - | See step 9 |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
