Removal [03/2023 - ]: Procedure

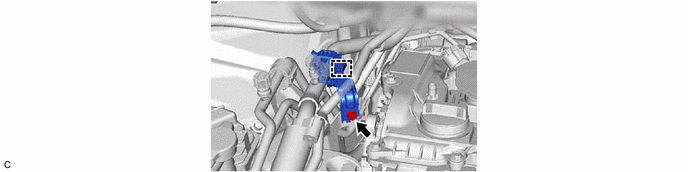

REMOVE NO. 2 COOLER BRACKET (for PHEV Model)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE CAM TIMING OIL CONTROL SOLENOID ASSEMBLY

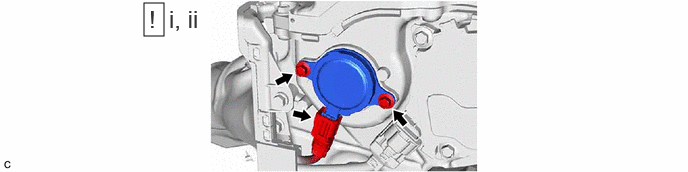

for HEV Model:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disconnect the cam timing oil control solenoid assembly connector.
Using an 8 mm socket wrench, remove the 2 bolts and cam timing oil control solenoid assembly from the No. 2 timing chain cover assembly.
NOTE:
If the cam timing oil control solenoid assembly has been struck or dropped, replace it.

for PHEV Model:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disconnect the cam timing oil control solenoid assembly connector.
Using an 8 mm socket wrench and 8 x 10 mm offset long wrench, remove the 2 bolts and cam timing oil control solenoid assembly from the No. 2 timing chain cover assembly.
NOTE:
If the cam timing oil control solenoid assembly has been struck or dropped, replace it.

REMOVE CAM TIMING OIL CONTROL SOLENOID O-RING

HINT:
Perform this procedure only when replacement of the cam timing oil control solenoid O-ring is necessary.

Remove the cam timing oil control solenoid O-ring from the cam timing oil control solenoid assembly.
NOTE:
- When removing the cam timing oil control solenoid O-ring, be careful not to damage the O-ring groove of the cam timing oil control solenoid assembly.
- If the O-ring groove of the cam timing oil control solenoid assembly is damaged, replace the cam timing oil control solenoid assembly with a new one.
