Removal [12/2022 - ]: Procedure

  1. REMOVE WIRING HARNESS CLAMP BRACKET

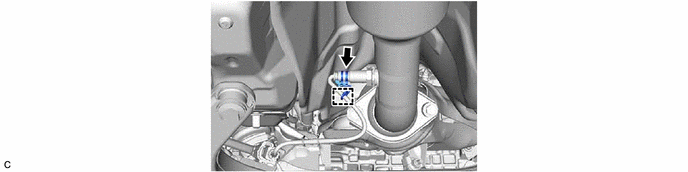

    1. GTY1145397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE AIR FUEL RATIO SENSOR

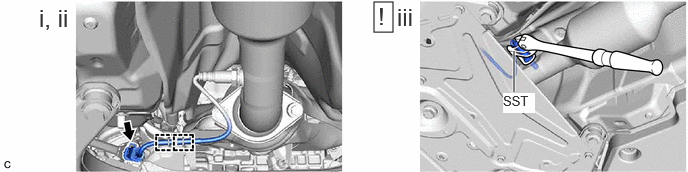

    1. GTY1154740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the air fuel ratio sensor connector.
      2. Disengage the 2 wire harness clamps.
      3. Using SST, remove the air fuel ratio sensor from the front exhaust pipe assembly.
        • SST: 09224-00012
        NOTE:

        If the air fuel ratio sensor has been struck or dropped, replace it.
