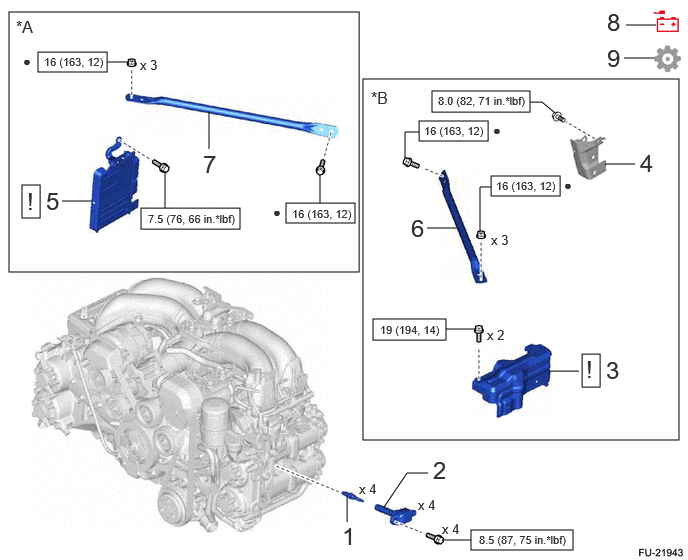

COMPONENTS (INSTALLATION)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | SPARK PLUG | 19100P | - | - | - |
| 2 | IGNITION COIL ASSEMBLY | 19500 | - | - | - |
| 3 | NO. 1 FUEL PIPE PROTECTOR LH | 23261A | See step 3 | - | - |
| 4 | FUEL TUBE PROTECTOR | 77252 | - | - | - |
| 5 | ECM | 89661 | See step 5 | - | - |
| 6 | FRONT UPPER SUSPENSION TO COWL BRACE SUB-ASSEMBLY LH | 53608 | - | - | - |
| 7 | FRONT UPPER SUSPENSION TO COWL BRACE SUB-ASSEMBLY RH | 53607 | - | - | - |
| 8 | NEGATIVE BATTERY TERMINAL | - | - | - | - |
| 9 | INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL | - | - | - | See step 9 |
| *A | for Bank 1 | *B | for Bank 2 |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
