Removal [11/2021 - ]: Procedure

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

Refer to PROCEDURE - Step 1
REMOVE FRONT WHEEL
Refer to REMOVAL [11/2021 - ]
REMOVE FRONT FENDER LINER
Refer to PROCEDURE - Step 5

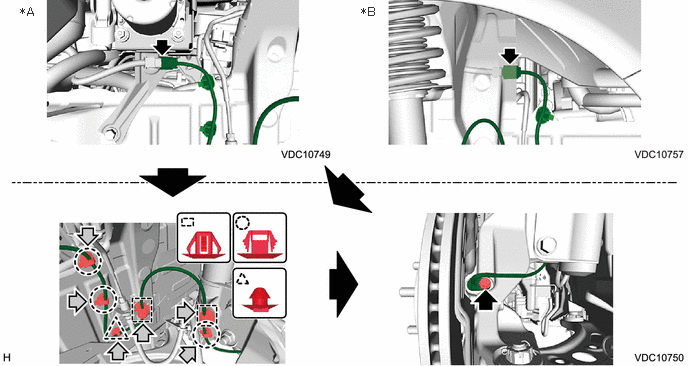

REMOVE FRONT SPEED SENSOR

NOTE:

Be careful not to damage the front speed sensor.
Do not apply excessive force to the front speed sensor harness.

GTY1048478

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A

for LH side

*B

for RH side
