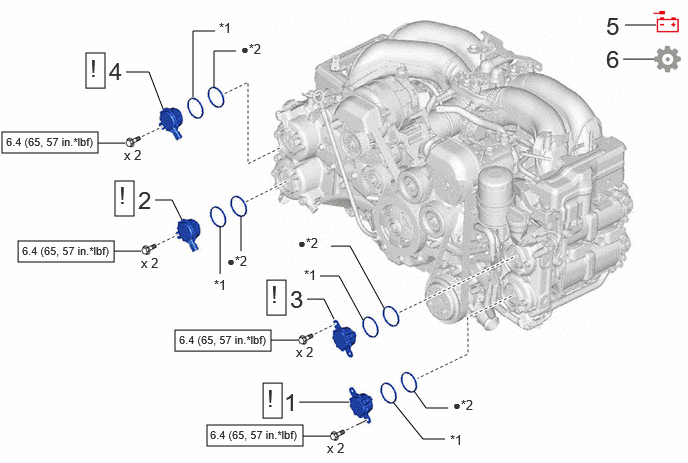

COMPONENTS (INSTALLATION)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | CAMSHAFT TIMING OIL CONTROL VALVE (for Exhaust Side of Bank 2) | 15330 | See step 1 | - | - |
| 2 | CAMSHAFT TIMING OIL CONTROL VALVE (for Exhaust Side of Bank 1) | 15330 | See step 2 | - | - |
| 3 | CAMSHAFT TIMING OIL CONTROL VALVE (for Intake Side of Bank 2) | 15330 | See step 3 | - | - |
| 4 | CAMSHAFT TIMING OIL CONTROL VALVE (for Intake Side of Bank 1) | 15330 | See step 4 | - | - |
| 5 | NEGATIVE BATTERY TERMINAL | - | - | - | - |
| 6 | INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL | - | - | - | See step 6 |
| *1 | TIMING GEAR COVER O-RING | *2 | TIMING GEAR OR CHAIN COVER GASKET |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
