Home >> Toyota >> 2021 >> Tacoma TRD Pro, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (2GR-FKS) - Service Information >> Mass Air Flow Meter >> Removal [08/2015 - ] >> Procedure

Removal [08/2015 - ]: Procedure

  1. REMOVE MASS AIR FLOW METER

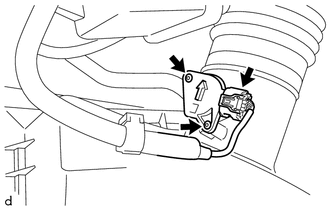

    1. Disconnect the connector from the mass air flow meter.
      GTY604492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and mass air flow meter from the air cleaner cap sub-assembly.
