Removal [08/2015 - ]: Procedure

  1. REMOVE FRONT FENDER SEAL RH

    HINT:

    Use the same procedure as for the LH side (Refer to PROCEDURE - Step 1 ).

  2. REMOVE CRANKSHAFT POSITION SENSOR

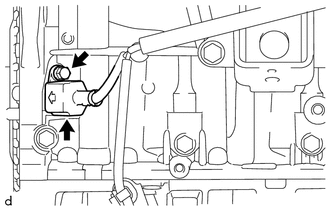

    1. Disconnect the connector from the crankshaft position sensor.
      GTY604478Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and crankshaft position sensor from the cylinder block sub-assembly.
