Removal [08/2015 - ]: Procedure

  1. REMOVE AIR FUEL RATIO SENSOR (for Bank 1 Sensor 1)
    1. Disconnect the air fuel ratio sensor connector.

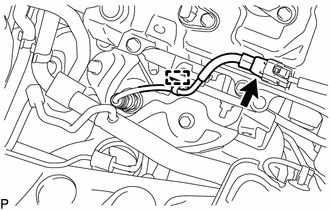

      GTY608956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp to separate the air fuel ratio sensor wire.
    3. Using SST, remove the air fuel ratio sensor from the exhaust manifold sub-assembly RH.

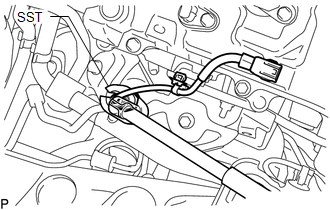

      GTY718625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09224-00011
  2. REMOVE AIR FUEL RATIO SENSOR (for Bank 2 Sensor 1)
    1. Disconnect the air fuel ratio sensor connector.

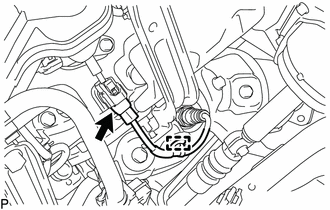

      GTY589692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp to separate the air fuel ratio sensor wire.
    3. Using SST, remove the air fuel ratio sensor from the exhaust manifold sub-assembly LH.

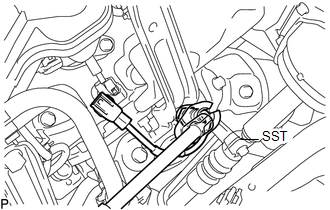

      GTY712879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09224-00011
