Removal [07/2020 - ]: Procedure

  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 12

  2. REMOVE VACUUM SENSOR ASSEMBLY
    1. Turn the START-STOP button (engine switch) off.

      HINT:

      Pressing and holding the AUDIO button changes the power source mode to IG OFF.

      GTY945804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Loosen T25 screw (1).

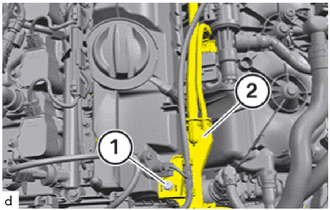

      GTY994693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Set the engine wire (2) aside.
    4. Unlock connector (1) and pull off.

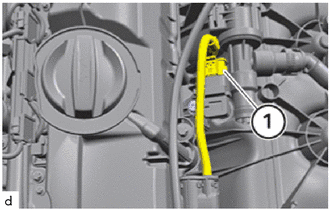

      GTY994696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Loosen T25 screw (1).

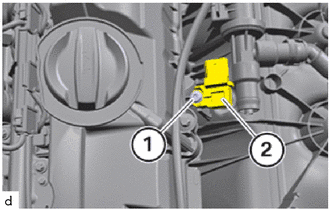

      GTY994695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the vacuum sensor assembly (2).
