Installation [07/2020 - ]: Procedure

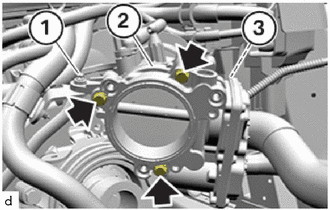

1. Replace the throttle body gasket (1).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Feed in and install the throttle body with motor assembly (2).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Connect and lock the connector (3).
4. Tighten screws (arrows).

   Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

5. Tighten down E10 bolt (1).

   Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

Refer to INSTALLATION [07/2020 - ]
