Removal [07/2020 - ]: Procedure

  1. REMOVE OIL FILLER CAP ASSEMBLY

    Refer to PROCEDURE - Step 2

  2. REMOVE OIL PAN DRAIN PLUG

    Refer to PROCEDURE - Step 4

  3. INSTALL OIL PAN DRAIN PLUG

    Refer to PROCEDURE - Step 5

  4. REMOVE INTAKE MANIFOLD

    Refer to REMOVAL [07/2020 - ]

  5. REMOVE SERVO MOTOR

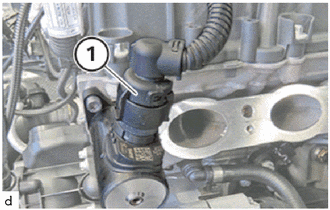

    1. Unlock and disconnect connector (1).
      GTY994561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

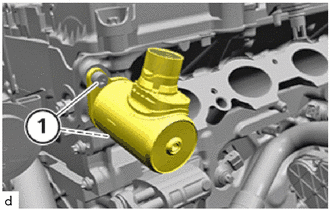

    2. Loosen T30 bolts (1).
      GTY994367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

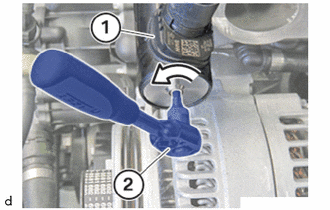

    3. Using a 4 mm hexagon socket wrench (2), turn the drive shaft of the servo motor (1) in the direction of the arrow.
      GTY994567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Make sure that the drive shaft of the servo motor is turned to the end stop of the eccentric shaft at a maximum.
    5. Remove servo motor (1).
