Installation [07/2020 - ]: Procedure

Refer to PROCEDURE - Step 1

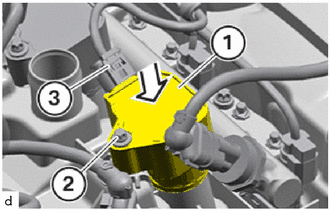

1. Install the ignition coil assembly (1) in the direction of the arrow.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Tighten down E8 bolt (2).

   Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

3. Connect and lock the connector (3).

   HINT:

   The connector (3) must engage audibly.

4. Turn the sound insulation (2) at the pivot point (1) to the installation position and guide it in where marked (arrows).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PROCEDURE - Step 40
