Components [07/2020 - ]

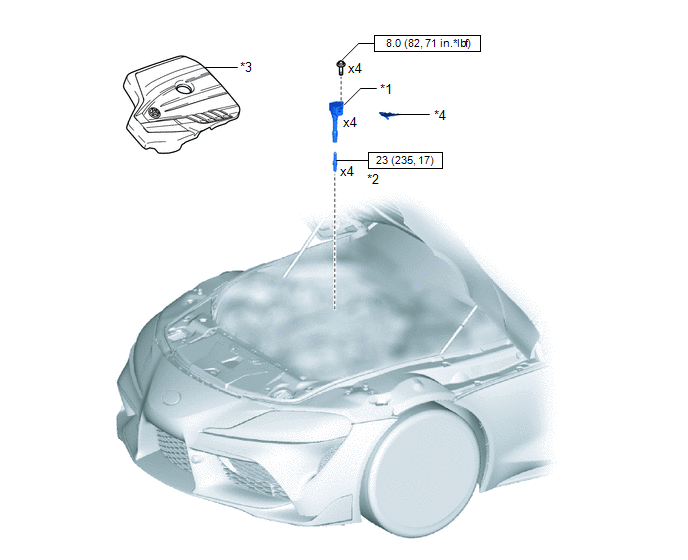

Fig 1: Ignition Coil And Spark Plug Replacement Components With Torque Specifications [07/2020 - ]
GTY995051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 IGNITION COIL ASSEMBLY *2 SPARK PLUG
*3 NO. 1 ENGINE COVER SUB-ASSEMBLY *4 SERVICE OPENING
N*m (kgf*cm, ft.*lbf): Specified torque - -
