Removal [07/2020 - ]: Procedure

  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 12

  2. REMOVE CAMSHAFT POSITION SENSOR (for Intake Side)
    1. Unlock plug connection (1) and disconnect.

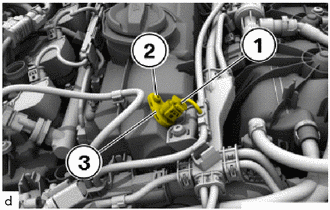

      GTY994638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Loosen T20 bolt (2).
    3. Remove the camshaft position sensor (3).
  3. REMOVE CAMSHAFT POSITION SENSOR (for Exhaust Side)
    1. Unlock plug connection (1) and disconnect.

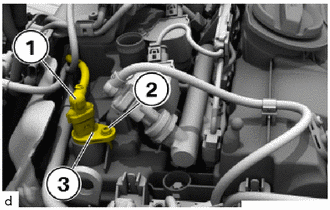

      GTY994634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Loosen T20 bolt (2).
    3. Remove the camshaft position sensor (3).
