Parts Location [08/2019 - ]: Illustration

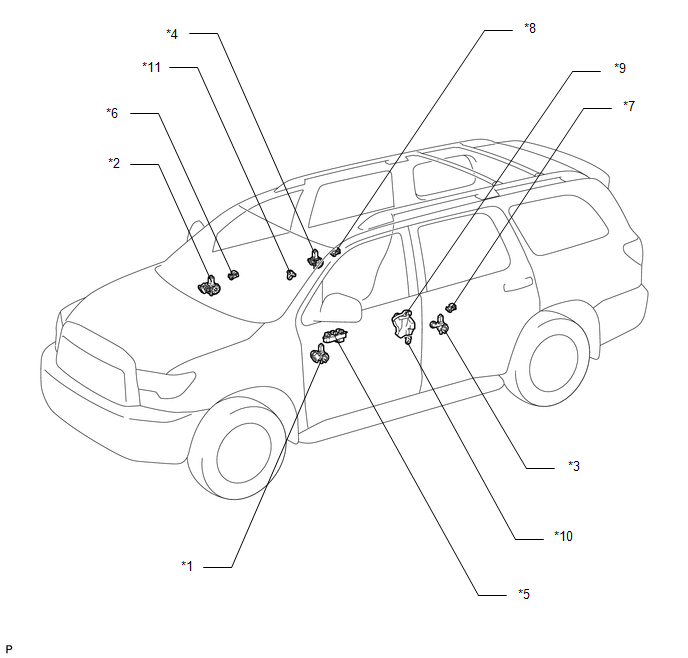

| *1 | FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH | *2 | FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH |
| *3 | REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY LH | *4 | REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY RH |
| *5 | POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY | *6 | FRONT POWER WINDOW REGULATOR SWITCH ASSEMBLY RH |
| *7 | REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY LH | *8 | REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY RH |
| *9 | FRONT DOOR LOCK ASSEMBLY LH | *10 | FRONT DOOR COURTESY LIGHT SWITCH LH |
| *11 | FRONT DOOR COURTESY LIGHT SWITCH RH | - | - |

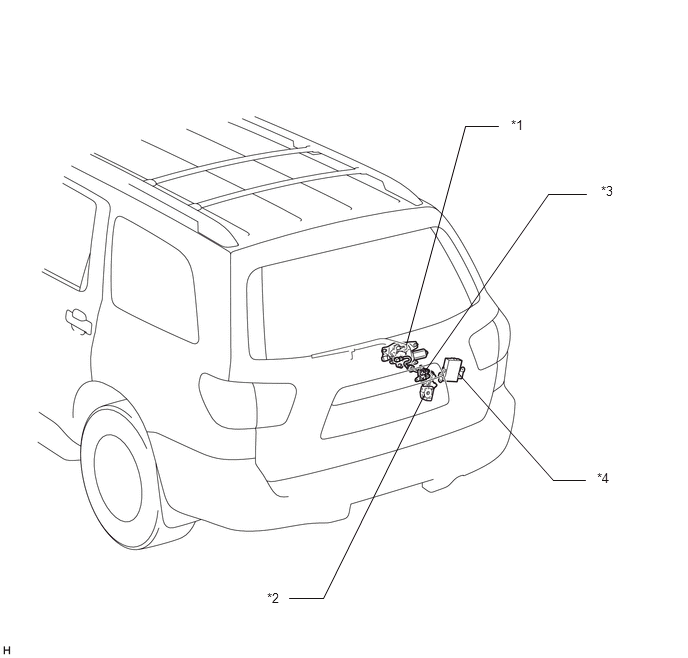

| *1 | REAR WIPER MOTOR ASSEMBLY | *2 | BACK DOOR POWER WINDOW REGULATOR MOTOR ASSEMBLY |
| *3 | TAIL GATE CONTROL SWITCH ASSEMBLY - UNLOCK SWITCH - LOCK SWITCH |
*4 | BACK DOOR ECU |

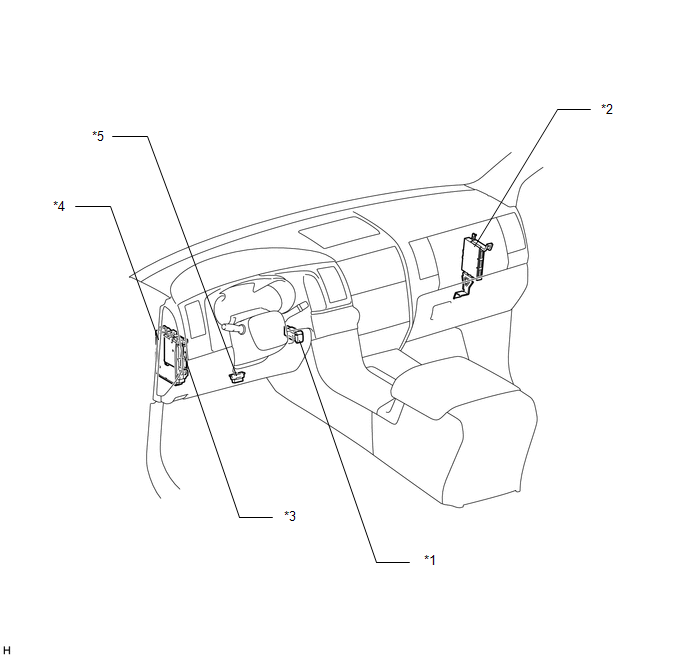

| *1 | BACK DOOR POWER WINDOW REGULATOR SWITCH ASSEMBLY | *2 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *3 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *4 | COWL SIDE JUNCTION BLOCK LH - PWR RELAY - POWER FUSE - DOOR FUSE - DOOR R/R FUSE - DOOR R/L FUSE - ECU-B NO. 2 FUSE - ECU-IG1 NO. 4 FUSE - ECU-DCC NO. 2 FUSE |
| *5 | DLC3 | - | - |
