Parts Location [08/2015 - 08/2017]: Illustration

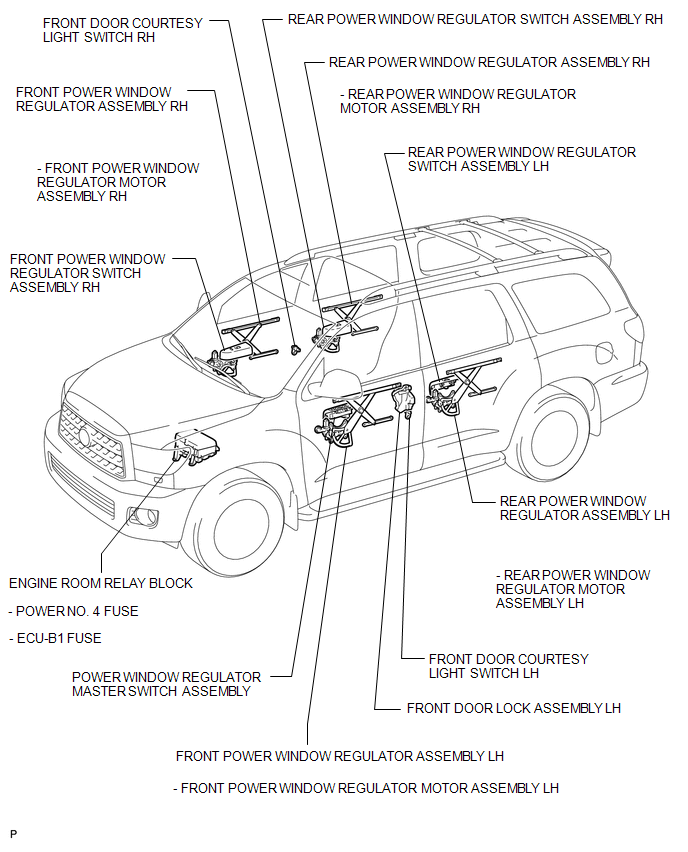

GTY556073

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

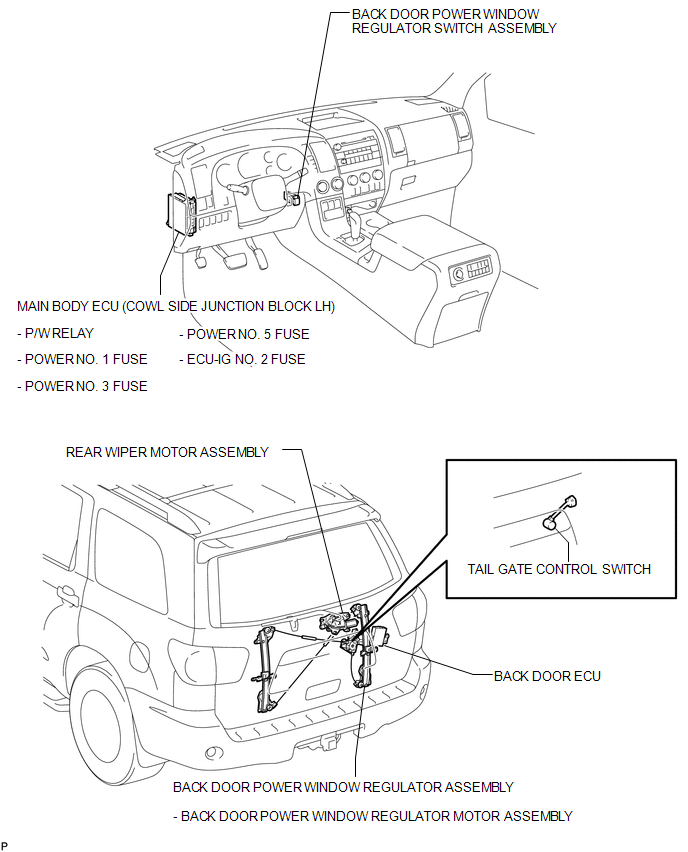

GTY587265

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
