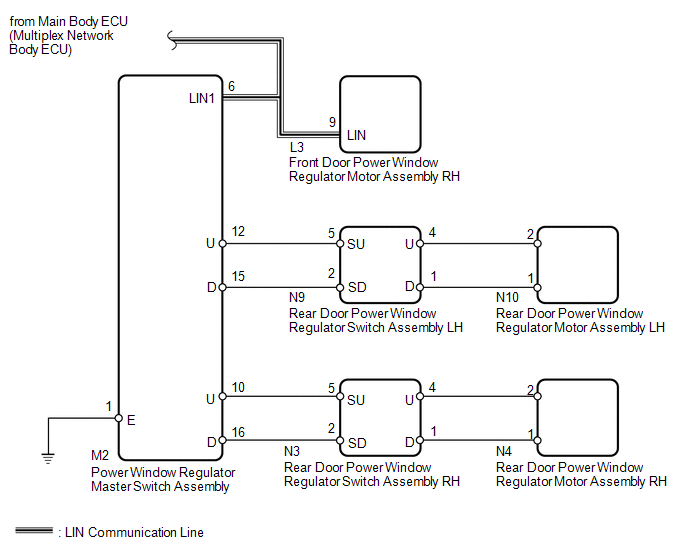

Remote Up / Down Function does not Operate [08/2019 - ]: Wiring Diagram

GTY932053

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
