Installation [08/2017 - ]: Procedure

INSTALL CRUISE CONTROL MAIN SWITCH

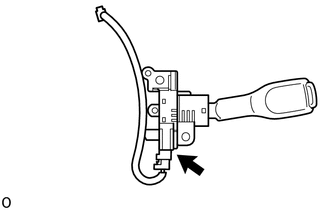

Connect the connector, install the cruise control switch wire to the cruise control main switch.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

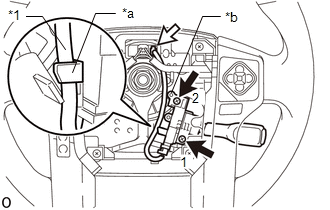

Pass the cruise control switch wire under the rib as shown in the illustration.

Fig 1: Cruise Control Main Switch Tightening Sequence

Attach the guide.
Temporarily install the cruise control main switch with the 2 screws.
Tighten the 2 screws to install the cruise control main switch.
HINT:

Tighten the screws in the order shown in the illustration.
Connect the connector.

INSTALL STEERING PAD
Refer to PROCEDURE - Step 1 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 5 [08/2019 - ]
INSTALL LOWER NO. 3 STEERING WHEEL COVER
Refer to PROCEDURE - Step 2 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 2 [08/2019 - ]
INSTALL LOWER NO. 2 STEERING WHEEL COVER
Refer to PROCEDURE - Step 3 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 3 [08/2019 - ]
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [08/2017 - 08/2018] , or refer to INITIALIZATION [08/2018 - 08/2019] , or refer to INITIALIZATION [08/2019 - ]

Torque: 5.4 N.m (55 kgf.cm, 48 in..lbf)
CHECK SRS WARNING LIGHT
Refer to OPERATION CHECK [08/2017 - 08/2019] , or refer to OPERATION CHECK [08/2019 - ]
