Components [11/2018 - ]

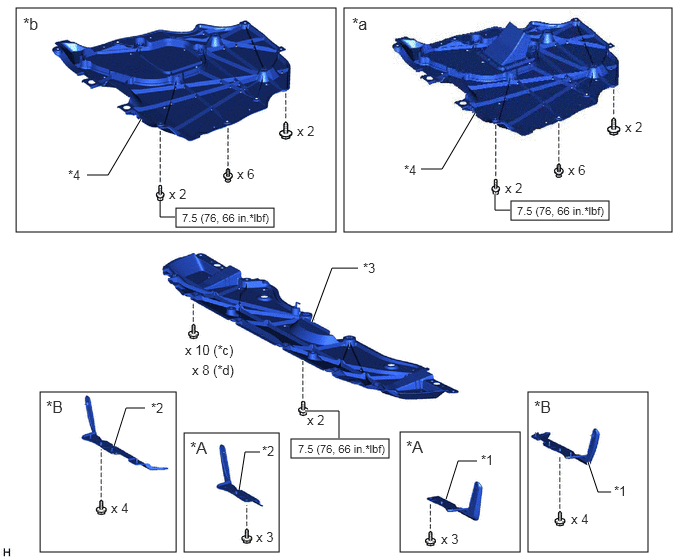

Fig 1: Active Control Engine Mount (For Front Side) Replacement Components With Torque Specifications (1 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Short Type | *B | for Long Type |
| *1 | FRONT FENDER SPLASH SHIELD LH | *2 | FRONT FENDER SPLASH SHIELD RH |
| *3 | NO. 1 ENGINE UNDER COVER | *4 | NO. 2 ENGINE UNDER COVER ASSEMBLY |
| *a | w/ Air Duct | *b | w/o Air Duct |
| *c | Short Type Front Fender Front Splash Shield | *d | Long Type Front Fender Front Splash Shield |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

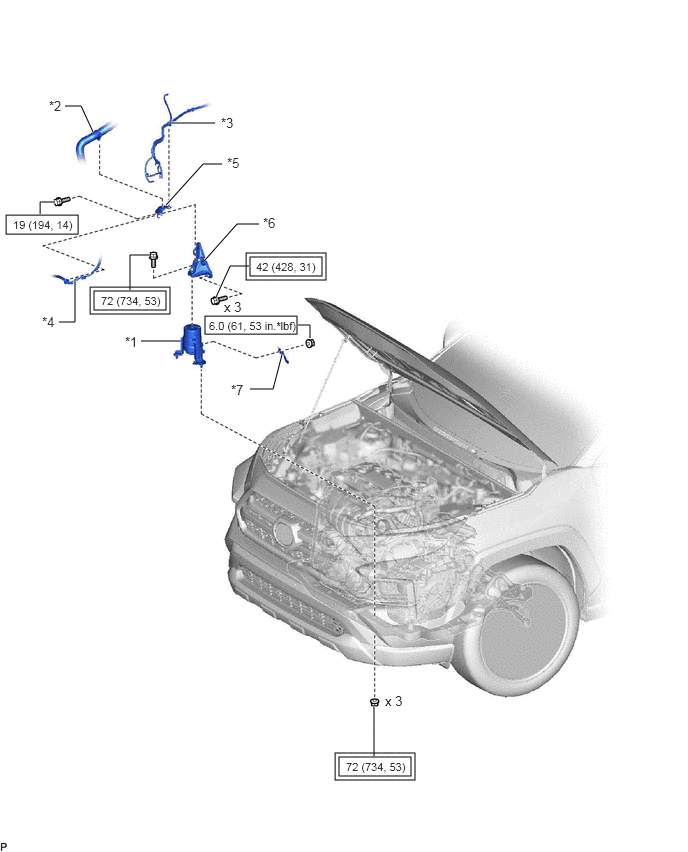

Fig 2: Active Control Engine Mount (For Front Side) Replacement Components With Torque Specifications (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT ENGINE MOUNTING INSULATOR | *2 | RADIATOR HOSE |
| *3 | VACUUM HOSE | *4 | NO. 2 ENGINE WIRE |
| *5 | NO. 1 RADIATOR BRACKET | *6 | FRONT ENGINE MOUNTING BRACKET |
| *7 | STAY | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque |
