Parts Location [11/2018 - ]: Illustration

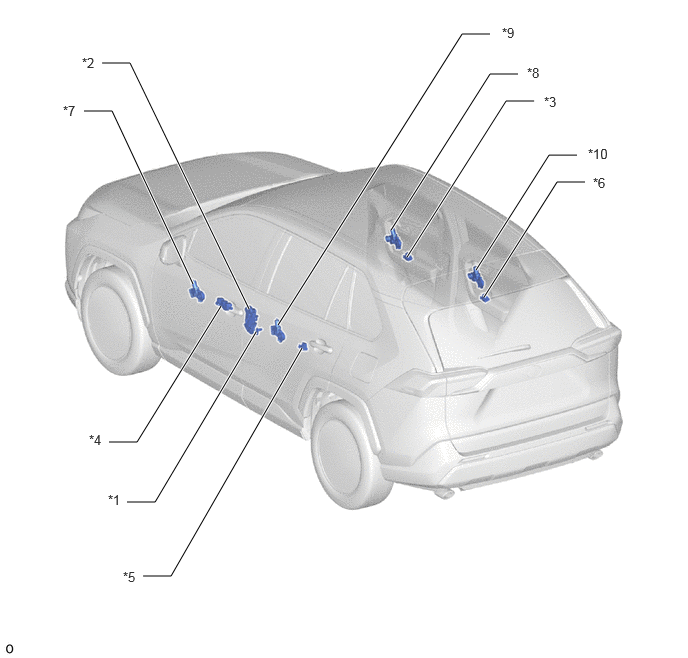

Fig 1: Power Window Control System Replacement Components (1 Of 2) [11/2018 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH	*2	FRONT DOOR WITH MOTOR LOCK ASSEMBLY LH
*3	POWER WINDOW REGULATOR SWITCH ASSEMBLY	*4	MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY
*5	REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY LH	*6	REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY RH
*7	FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH	*8	FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH
*9	REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY LH	*10	REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY RH

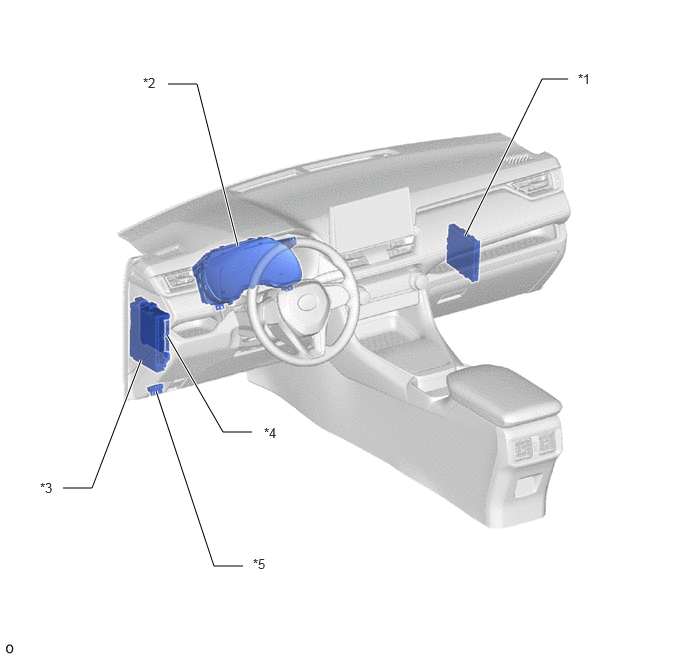

Fig 1: Power Window Control System Replacement Components (2 Of 2) [11/2018 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)	*2	COMBINATION METER ASSEMBLY
*3	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-B NO. 2 FUSE - DOOR F/L FUSE - DOOR F/R FUSE - DOOR R/L FUSE - DOOR R/R FUSE	*4	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*5	DLC3	-	-
