Fuel Delivery
>>
Fuel System - Service Information
>>
Fuel Sender Gauge Assembly
>>
Components [11/2015 - 12/2018]
Components [11/2015 - 12/2018]

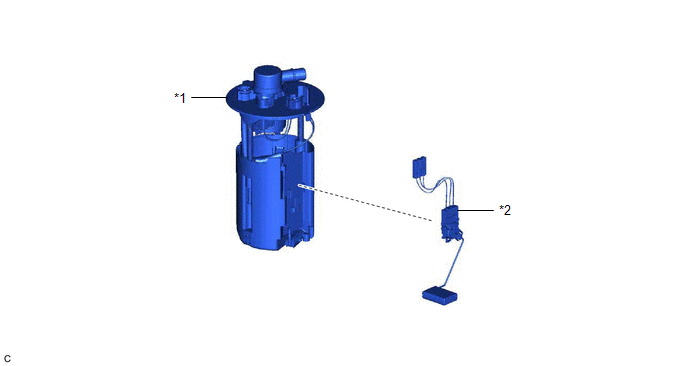

Fig 1: Fuel Sender Gauge Assembly Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY
*2
FUEL SENDER GAUGE ASSEMBLY
