Reassembly [12/2018 - ]: Procedure

HINT:

Perform "Inspection After Repair" after replacing the fuel pump.

Refer to INITIALIZATION [11/2015 - ]

1. Apply gasoline to a new O-ring. Then install the O-ring and fuel pump spacer to the fuel pump.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	O-ring
   *2	Fuel Pump Spacer

2. Install the fuel pump to the fuel tube supporter.
   NOTE:

   Make sure that the O-ring is not cut or pinched during installation.

3. Engage the 3 claws to install the No. 2 fuel suction support to the fuel tube supporter.
4. Engage the 4 claws to install the fuel suction plate sub-assembly to the No. 1 fuel sub-tank.
5. Align the protrusion of the No. 1 fuel sub-tank with the installation hole of the fuel suction plate sub-assembly and then slide the fuel suction plate sub-assembly to install the No. 1 fuel sub-tank.

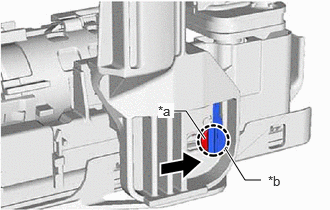

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protrusion
   *b	Installation Hole
   	Slide

6. Engage the clamp to install the fuel pump harness to the fuel suction plate sub-assembly.
   NOTE:

   • Do not damage the wire harness.
   • When engaging each wire harness to the clamp, engage one wire at a time.
7. Connect the 2 fuel pump harness connectors.

See step  1
