Disassembly [12/2018 - ]: Procedure

REMOVE FUEL SENDER GAUGE ASSEMBLY
See step 2 [12/2018 - ] See step 2 [12/2018 - ]

REMOVE FUEL PUMP

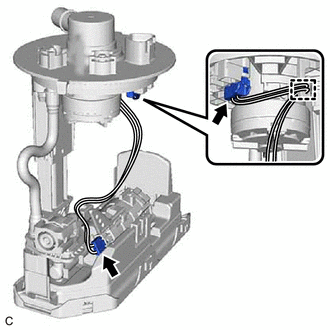

Disconnect the 2 fuel pump harness connectors.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disengage the clamp and remove the fuel pump harness from the fuel suction plate sub-assembly.
NOTE:
- Do not damage the wire harness.
- When disengaging each wire harness from the clamp, disengage one wire at a time.

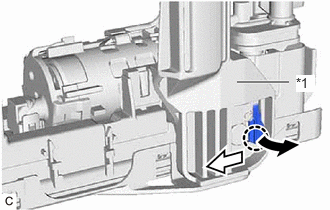

Disengage the claw and slide the fuel suction plate sub-assembly and then separate it from the No. 1 fuel sub-tank.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Fuel Suction Plate Sub-assembly
	Pull
	Slide

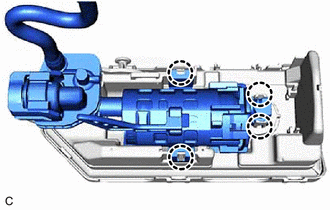

Disengage the 4 claws and remove the fuel suction plate sub-assembly from the No. 1 fuel sub-tank.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

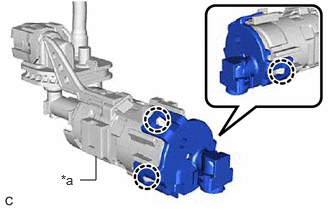

Disengage the 3 claws and remove the No. 2 fuel suction support from the fuel tube supporter.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Fuel Tube Supporter

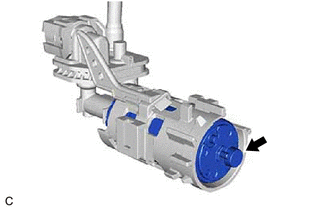

Remove the fuel pump from the fuel tube supporter.

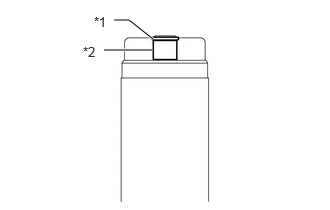

Remove the O-ring and fuel pump spacer from the fuel pump.

*1	O-ring
*2	Fuel Pump Spacer
