Removal [11/2015 - 12/2018]: Procedure

  1. REMOVE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

    Refer to REMOVAL [11/2015 - 12/2018]

  2. REMOVE FUEL SENDER GAUGE ASSEMBLY

    See step  2

  3. REMOVE FUEL PUMP WITH FILTER ASSEMBLY

    See step  2

  4. REMOVE FUEL PRESSURE REGULATOR ASSEMBLY
    1. Using a screwdriver with its tip wrapped with protective tape, remove the fuel pressure regulator assembly from the fuel filter.

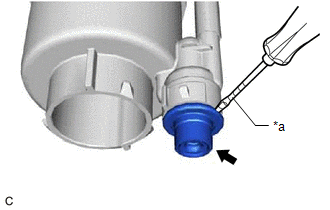

      GTY569752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      NOTE:
      • Pull out the fuel pressure regulator assembly carefully because the O-rings are firmly installed between the fuel pressure regulator assembly and fuel filter.
      • Do not damage the fuel filter.
    2. Remove the 2 O-rings from the fuel pressure regulator assembly.
      GTY429371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 O-ring
