Components [11/2015 - ]

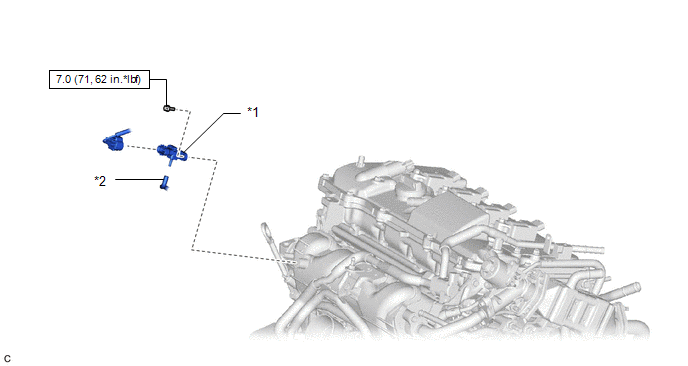

Fig 1: Vacuum Sensor Replacement Components With Torque Specifications
GTY578509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 E.F.I. VACUUM SENSOR ASSEMBLY (MANIFOLD ABSOLUTE PRESSURE SENSOR) *2 VACUUM HOSE
N.m (kgf.cm, ft./lbf): Specified torque - -
