Components [11/2015 - ]

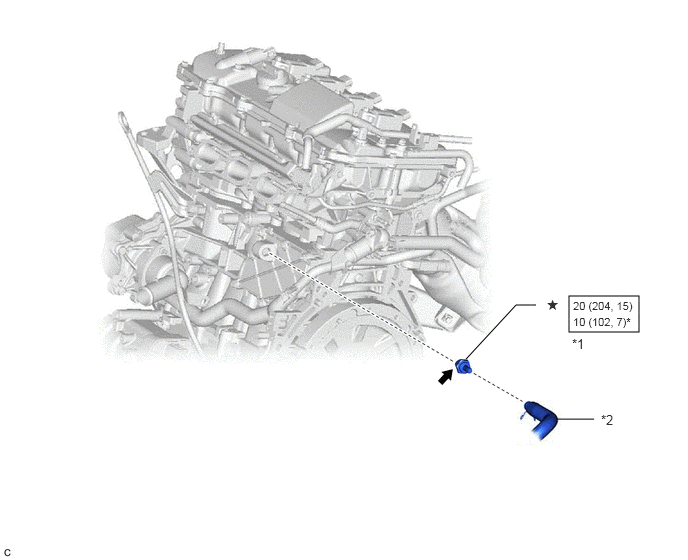

Fig 1: PCV Valve Replacement Components With Torque Specifications
GTY548825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY) *2 VENTILATION HOSE
N.m (kgf.cm, ft./lbf): Specified torque * For use with a 22 mm ball joint lock nut wrench
Adhesive 1324 * Precoated part
