Components [11/2015 - 12/2018]

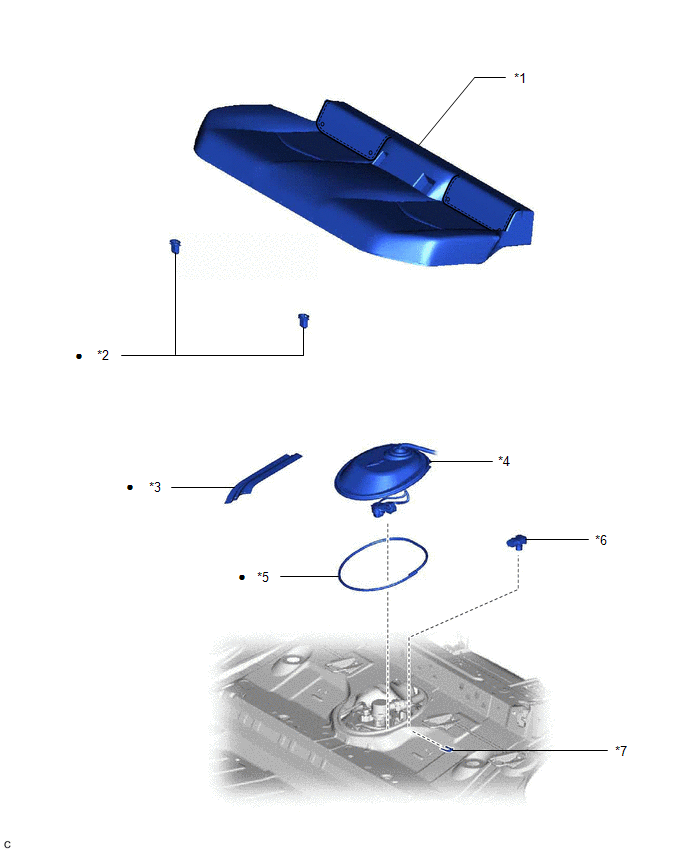

Fig 1: Fuel Tank Pressure Sensor Replacement Components
GTY608886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 REAR SEAT CUSHION ASSEMBLY *2 REAR SEAT CUSHION LOCK HOOK
*3 NO. 3 WIRING HARNESS PROTECTOR *4 REAR FLOOR SERVICE HOLE COVER
*5 BUTYL TAPE *6 FUEL TANK PRESSURE SENSOR (VAPOR PRESSURE SENSOR)
*7 TUBE JOINT CLIP - -
• Non-reusable part - -
