Removal [11/2015 - 12/2018]: Procedure
- PRECAUTION NOTE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.
Refer to PRECAUTION [11/2015 - 11/2017] , or refer to PRECAUTION [11/2017 - 12/2018]
- REMOVE BATTERY STATE SENSOR ASSEMBLY

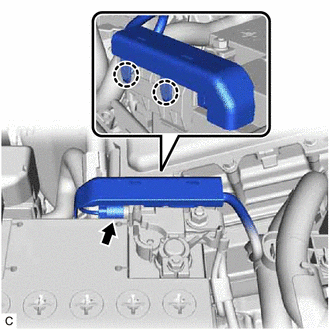

- Disengage the 2 claws and disconnect the wire harness from the battery current sensor holder.
- Disconnect the battery state sensor assembly connector.

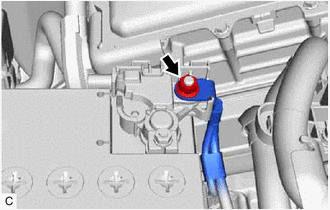

- Remove the nut and disconnect the engine wire from the battery state sensor assembly.NOTE:
When disconnecting the engine wire, some systems need to be initialized after the engine wire is reconnected.
Refer to INITIALIZATION [11/2015 - 11/2017] , or refer to INITIALIZATION [11/2017 - 12/2018]

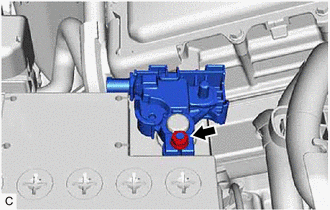

- Loosen the nut and remove the battery state sensor assembly from the auxiliary battery.
- Disengage the 2 claws to remove the battery state sensor assembly from the battery current sensor holder.
- Disengage the 2 claws and disconnect the wire harness from the battery current sensor holder.
