Components [11/2015 - ]

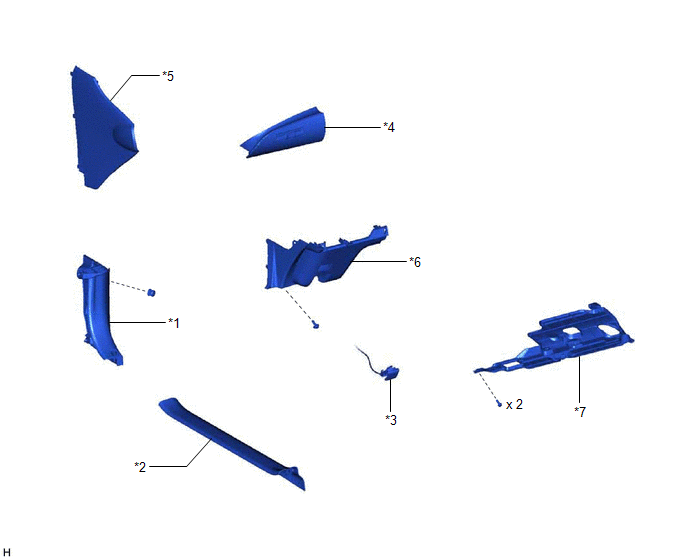

Fig 1: Brake Pedal Stroke Sensor Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	COWL SIDE TRIM BOARD LH	*2	FRONT DOOR SCUFF PLATE LH
*3	HOOD LOCK CONTROL LEVER SUB-ASSEMBLY	*4	INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY
*5	INSTRUMENT PANEL FINISH PANEL END LH	*6	LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY
*7	NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY	-	-

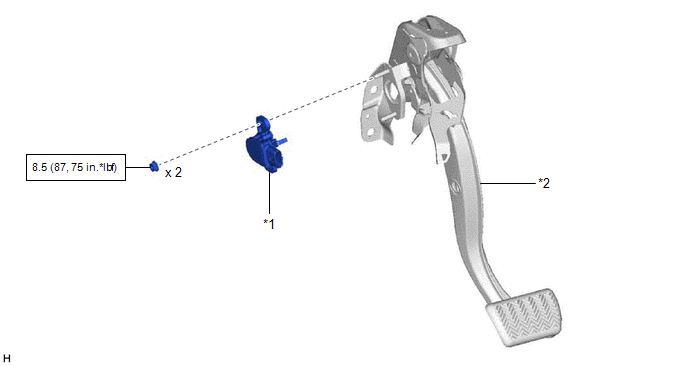

Fig 2: Brake Pedal Stroke Sensor Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	BRAKE PEDAL STROKE SENSOR ASSEMBLY	*2	BRAKE PEDAL SUPPORT ASSEMBLY
	N.m (kgf.cm, ft./lbf): Specified torque	-	-
