Components [11/2015 - ]

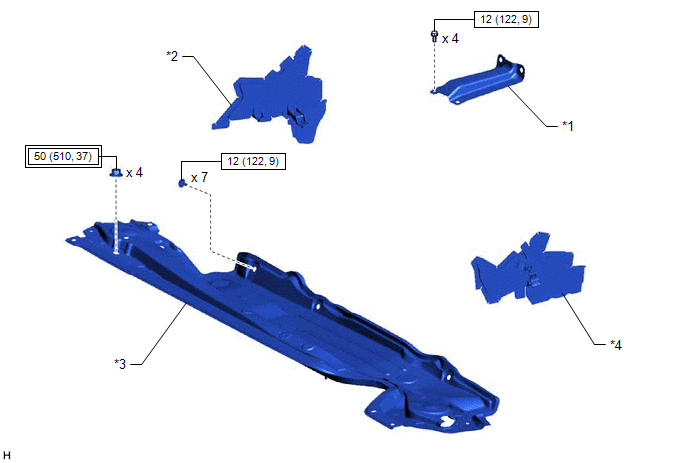

Fig 1: Brake Actuator Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	COWL BODY MOUNTING REINFORCEMENT LH	*2	NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL
*3	OUTER COWL TOP PANEL SUB-ASSEMBLY	*4	WATER GUARD PLATE LH
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf*cm, ft./lbf)		N.m (kgf.cm, ft./lbf): Specified torque

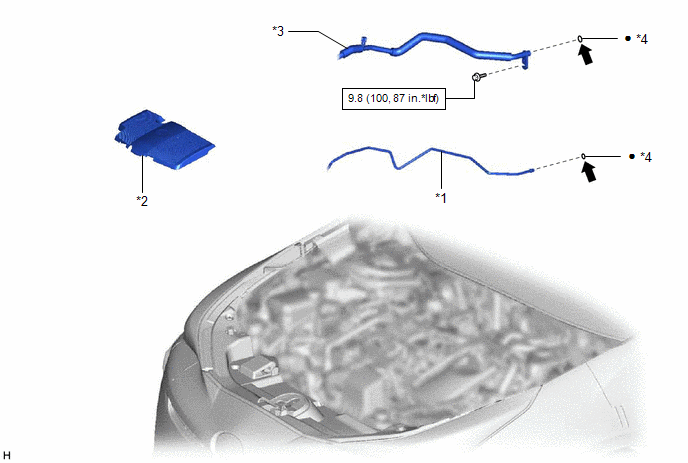

Fig 2: Brake Actuator Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	AIR CONDITIONER TUBE AND ACCESSORY ASSEMBLY	*2	NO. 1 ENGINE COVER SUB-ASSEMBLY
*3	SUCTION PIPE SUB-ASSEMBLY	*4	O-RING
	N.m (kgf.cm, ft./lbf): Specified torque	•	Non-reusable part
	Compressor oil ND-OIL 11 or equivalent	-	-

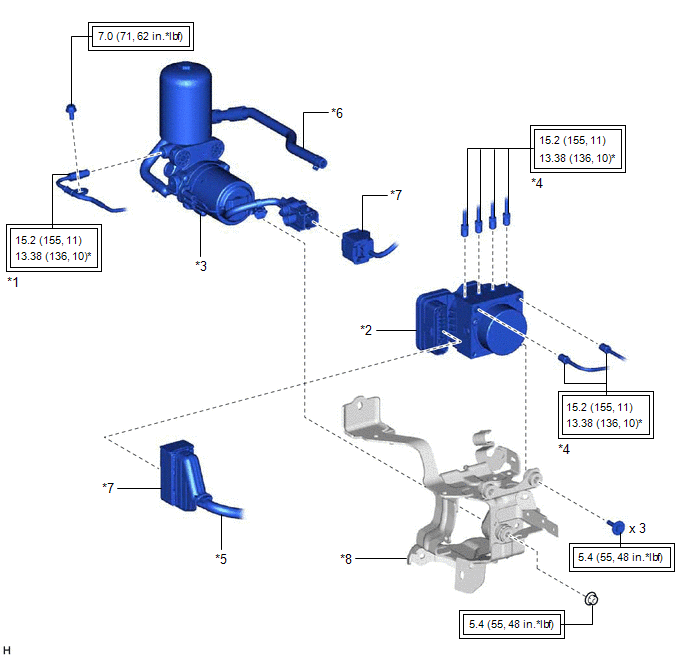

Fig 3: Brake Actuator Replacement Components With Torque Specifications (3 Of 3)

Callout	Description	Callout	Description
*1	ACCUMULATOR TO BRAKE MASTER CYLINDER TUBE	*2	BRAKE ACTUATOR ASSEMBLY
*3	BRAKE BOOSTER PUMP ASSEMBLY	*4	BRAKE LINE
*5	ENGINE ROOM MAIN WIRE	*6	NO. 1 BRAKE ACTUATOR HOSE
*7	CONNECTOR	*8	BRAKE ACTUATOR BRACKET ASSEMBLY
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf.cm, ft./lbf)	*	For use with a union nut wrench
