Inspection [11/2015 - ]: Procedure
- INSPECT MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY
- Check that the LED illuminates.

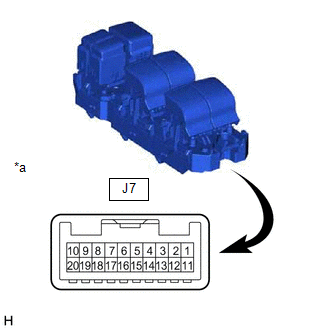

*a Component without harness connected
(Multiplex Network Master Switch Assembly)- Apply auxiliary battery voltage to the multiplex network master switch assembly and check that the LED illuminates.
OK
Click Location & Routing(J7)
Click Connector(J7)
Tester Connection Specified Condition J7-3 (ILL+) - Auxiliary battery positive (+)
J7-13 (ILL-) - Auxiliary battery negative (-)LED illuminates If the result is not as specified, replace the multiplex network master switch assembly.
- Apply auxiliary battery voltage to the multiplex network master switch assembly and check that the LED illuminates.
- Check that the LED illuminates.
