Removal [11/2015 - ]: Procedure

  1. REMOVE AIR CONDITIONER UNIT ASSEMBLY

    Refer to REMOVAL [11/2015 - 11/2017] , or refer to REMOVAL [11/2017 - 12/2018] , or refer to REMOVAL [12/2018 - 07/2020] , or refer to REMOVAL [07/2020 - 06/2021] , or refer to REMOVAL [06/2021 - ]

  2. REMOVE ID CODE BOX (IMMOBILISER CODE ECU)

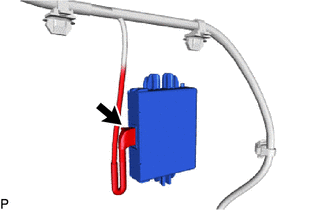

    1. Disconnect the connector to remove the ID code box (immobiliser code ECU).
      GTY606150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
