Installation [11/2015 - 11/2017]: Procedure

  1. INSTALL STEREO COMPONENT TUNER ASSEMBLY WITH WIRE (w/ Satellite Radio)
  2. INSTALL NAVIGATION RECEIVER ASSEMBLY
  3. INSTALL NO. 2 RADIO BRACKET
    1. w/o Satellite Radio:
      1. Install the No. 2 radio bracket with the 3 screws.
    2. w/ Satellite Radio:
      1. Install the No. 2 radio bracket with the 5 screws.
  4. INSTALL NO. 1 RADIO BRACKET
    1. w/o Satellite Radio:
      1. Install the No. 1 radio bracket with the 3 screws.
    2. w/ Satellite Radio:
      1. Install the No. 1 radio bracket with the 5 screws.
  5. CONNECT STEREO COMPONENT TUNER ASSEMBLY WITH WIRE (w/ Satellite Radio)
    1. Connect the 3 connectors to connect the stereo component tuner assembly with wire.
  6. INSTALL NAVIGATION RECEIVER ASSEMBLY WITH BRACKET
    1. Connect each connector.

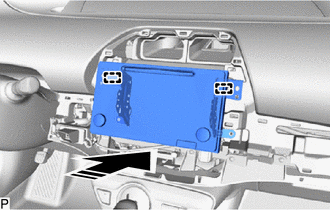

    2. Engage the 2 guides to temporarily install the navigation receiver assembly with bracket as shown in the illustration.
      GTY563293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    3. Install the navigation receiver assembly with bracket with the 4 bolts.
  7. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 16

  8. INSTALL INSTRUMENT PANEL FINISH PANEL END RH

    Refer to PROCEDURE - Step 17

  9. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 2
