Components [08/2019 - ]

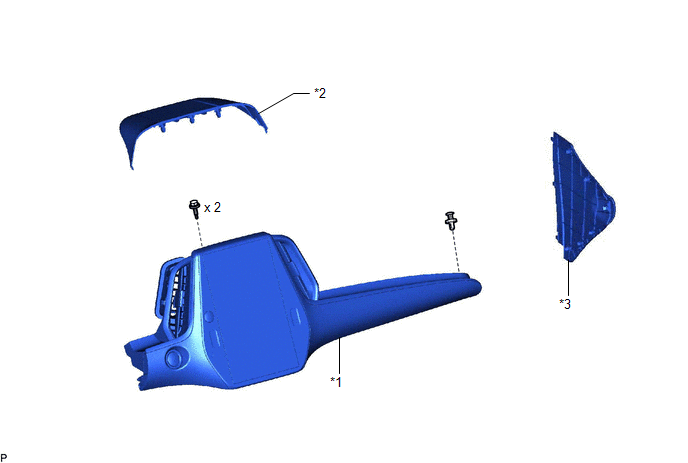

Fig 1: Navigation Receiver Replacement Components (1 Of 2)[08/2019 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY WITH NAVIGATION RECEIVER ASSEMBLY	*2	CENTER INSTRUMENT CLUSTER FINISH PANEL UPPER
*3	INSTRUMENT PANEL FINISH PANEL END RH	-	-

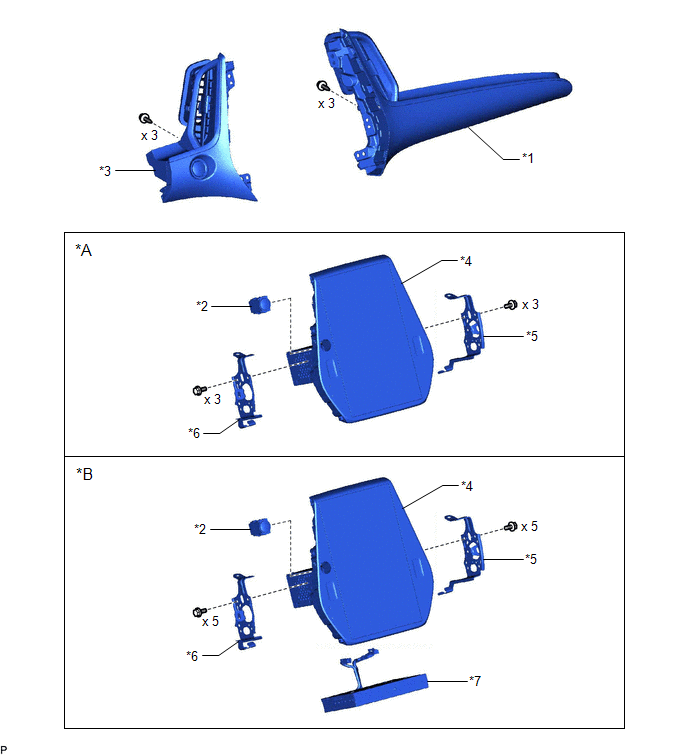

Fig 2: Navigation Receiver Replacement Components (2 Of 2)[08/2019 - ]

*A	w/o Satellite Radio	*B	w/ Satellite Radio
*1	CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY	*2	HAZARD WARNING SIGNAL SWITCH ASSEMBLY
*3	INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY	*4	NAVIGATION RECEIVER ASSEMBLY
*5	NO. 1 RADIO BRACKET	*6	NO. 2 RADIO BRACKET
*7	STEREO COMPONENT TUNER ASSEMBLY WITH WIRE	-	-
