Components [07/2020 - ]

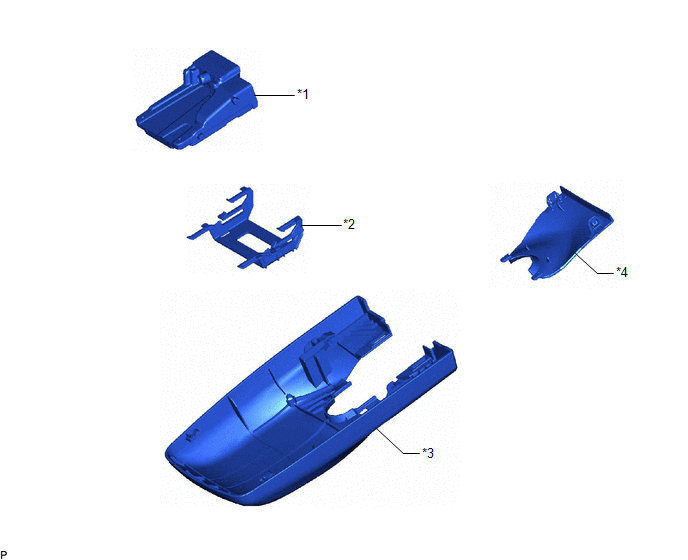

Fig 1: Front Camera Replacement Components
GTY987656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FORWARD RECOGNITION CAMERA *2 FORWARD RECOGNITION LATCH
*3 NO. 1 FORWARD RECOGNITION COVER *4 NO. 2 FORWARD RECOGNITION COVER
