Removal [11/2015 - 12/2018]: Procedure

  1. REMOVE HORN BUTTON ASSEMBLY

    Refer to REMOVAL [11/2015 - 12/2018]

  2. REMOVE CRUISE CONTROL MAIN SWITCH

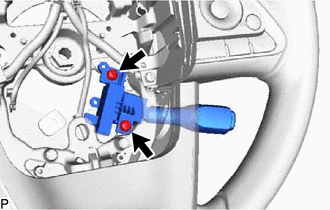

    1. Remove the 2 screws.
      GTY563760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

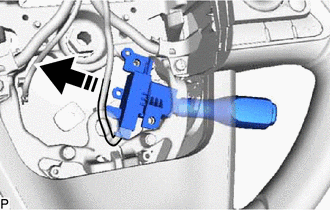

    2. Pull the cruise control main switch as shown in the illustration.
      GTY553328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

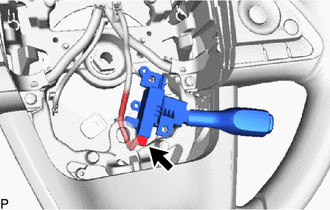

    3. Disconnect the connector to remove the cruise control main switch.
      GTY563761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
