Inspection [11/2015 - ]: Procedure

  1. INSPECT CRUISE CONTROL MAIN SWITCH
    1. Measure the resistance according to the value(s) in the table below.

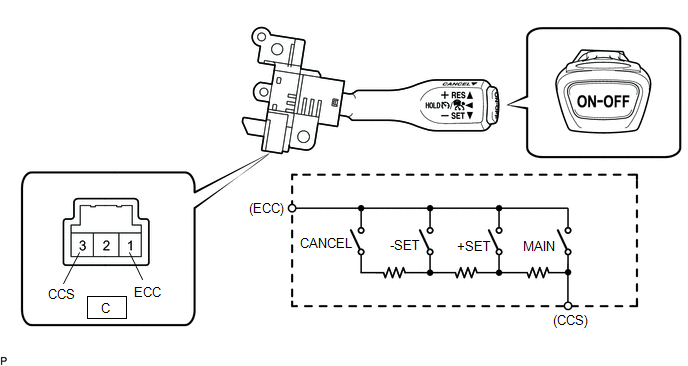

      GTY724350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Cruise Control Switch)      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      C-1 (ECC) - C-3 (CCS) Cruise control switch (ON-OFF button) released 1 MΩ or higher
      C-1 (ECC) - C-3 (CCS) Cruise control switch (ON-OFF button) pushed Below 2.5 Ω
      C-1 (ECC) - C-3 (CCS) +/RES 236 to 244 Ω
      C-1 (ECC) - C-3 (CCS) -/SET 618 to 642 Ω
      C-1 (ECC) - C-3 (CCS) CANCEL 1510 to 1570 Ω
      1. If the result is not as specified, replace the cruise control main switch.
