Components [11/2015 - ]

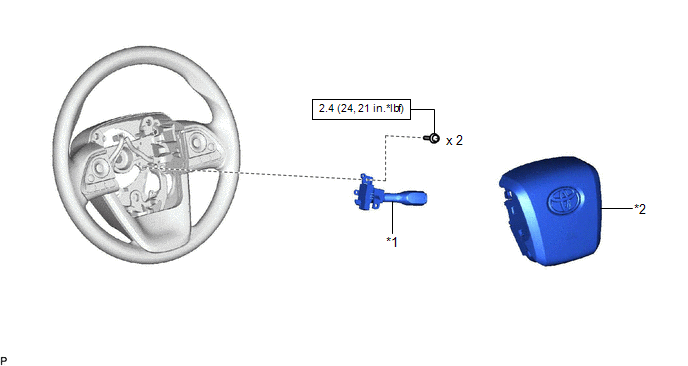

Fig 1: Cruise Control Main Switch Replacement Component With Torque Specifications
GTY538913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CRUISE CONTROL MAIN SWITCH *2 HORN BUTTON ASSEMBLY
N.m (kgf.cm, ft./lbf): Specified torque - -
