Removal [08/2015 - ]: Procedure

  1. REMOVE NO. 2 INSTRUMENT PANEL FINISH PANEL CUSHION

    Refer to PROCEDURE - Step 1 [08/2015 - ]

  2. REMOVE LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 2 [08/2015 - ]

  3. REMOVE INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 11 [08/2015 - ]

  4. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH

    Refer to PROCEDURE - Step 12 [08/2015 - ]

  5. REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH

    Refer to PROCEDURE - Step 13 [08/2015 - ]

  6. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 17 [08/2015 - ]

  7. REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 19 [08/2015 - ]

  8. REMOVE NO. 1 SWITCH HOLE BASE

    Refer to PROCEDURE - Step 20 [08/2015 - ]

  9. REMOVE PRE-COLLISION CITY BUZZER

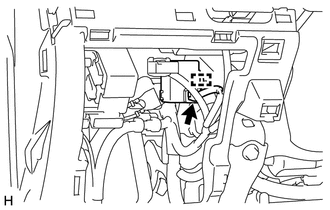

    1. Using a clip remover, detach the clamp.
      GTY598061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector and remove the pre-collision city buzzer.
