Components [08/2015 - ]

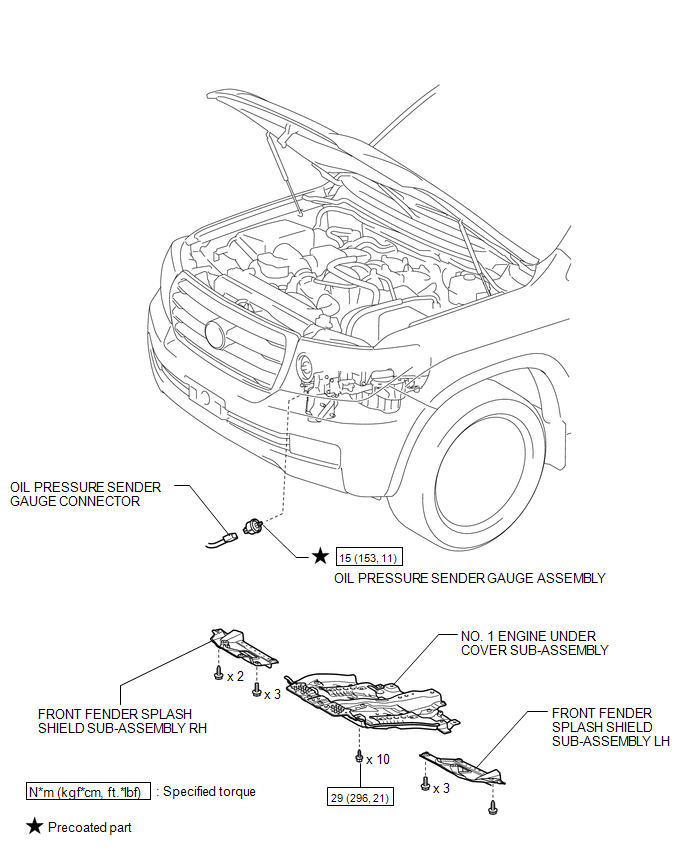

Fig 1: Oil Pressure Sensor Replacement Components With Torque Specifications

GTY545216

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
