Installation [08/2015 - ]: Procedure

  1. INSTALL FUEL INJECTOR ASSEMBLY

    HINT:

    Perform "Inspection After Repairs" after replacing the fuel injector (Refer to INITIALIZATION [08/2015 - ] ).

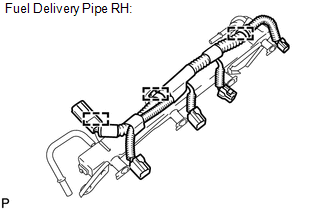

    1. Attach the 3 clamps to install the No. 6 wire harness to the delivery pipe RH.
      GTY550417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

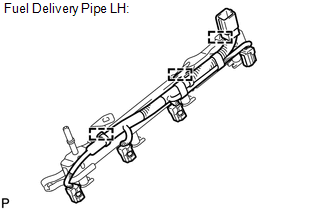

    2. Attach the 3 clamps to install the No. 7 wire harness to the delivery pipe LH.
      GTY610823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

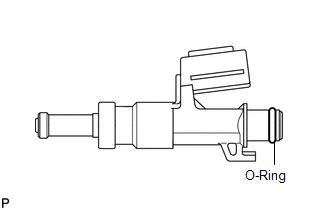

    3. Apply gasoline or spindle oil to a new O-ring and install it to the injector.
      GTY605075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Make sure that there is no damage or foreign material in the groove of the injector when installing the O-ring.

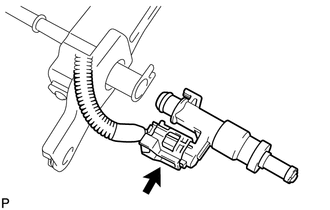

    4. Connect the injector connector.
      GTY567259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

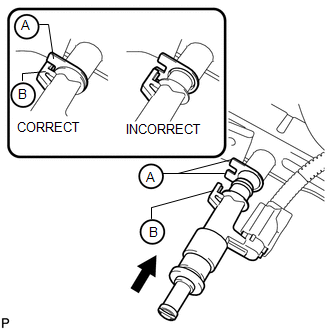

    5. Install the injector to the delivery pipe as shown in the illustration.
      GTY553658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Make sure that there are no scratches or foreign matter in or around the insertion hole of the delivery pipe.
      • When inserting the injector, be careful not to damage the O-ring.
      • Attach the part of the injector labeled B between the parts of the delivery pipe labeled A.

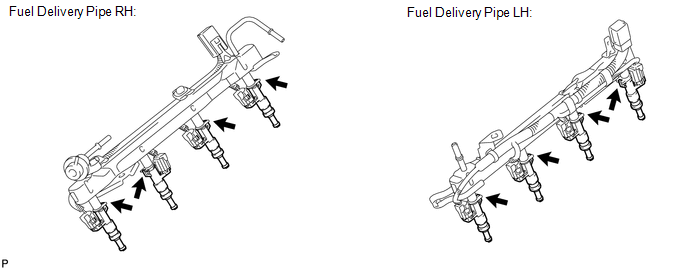

    6. Check that each injector is installed to the delivery pipe facing the direction shown in the illustration.
      GTY148265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FUEL DELIVERY PIPE SUBASSEMBLY LH

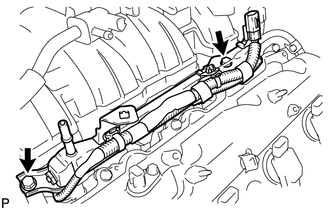

    1. Install the 2 delivery pipe spacers and 4 insulators to the cylinder head LH.
      GTY308865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the delivery pipe (with injectors) to the cylinder head LH.
    3. Install the 2 bolts.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

      NOTE:

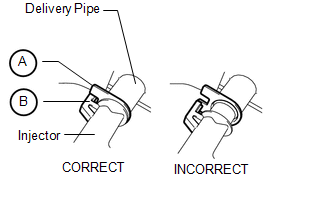

      GTY607724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Make sure that the part of the injector labeled B is between the parts of the delivery pipe labeled A.

    4. Connect the No. 7 wire harness connector.
  3. INSTALL FUEL DELIVERY PIPE SUBASSEMBLY RH

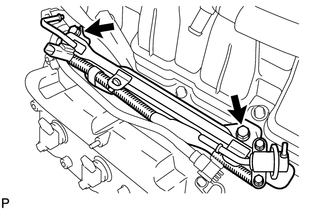

    1. Install the 2 delivery pipe spacers and 4 insulators to the cylinder head RH.
      GTY309983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the delivery pipe (with injectors) to the cylinder head RH.
    3. Install the 2 bolts.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

      NOTE:
      GTY607724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Make sure that the part of the injector labeled B is between the parts of the delivery pipe labeled A.

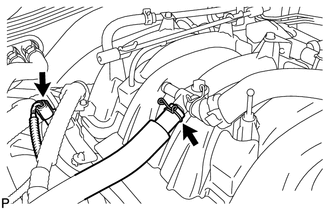

    4. Connect the No. 6 wire harness connector.
      GTY308864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Connect the ventilation hose.
  4. CONNECT NO. 1 FUEL HOSE

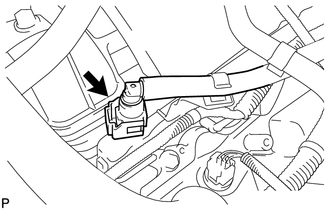

    1. Connect the No. 1 fuel hose to the fuel delivery pipe LH (Refer to PRECAUTION [08/2015 - ] ).
      GTY572051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. CONNECT NO. 1 FUEL TUBE

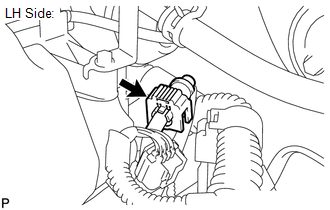

    1. GTY609591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      LH Side:

      Connect the No. 1 fuel tube to the delivery pipe LH (Refer to PRECAUTION [08/2015 - ] ).

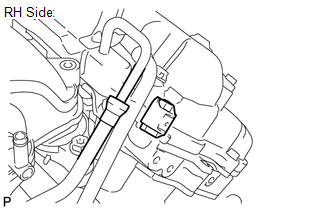

    2. GTY586916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      RH Side:

      Connect the No. 1 fuel tube to the delivery pipe RH (Refer to PRECAUTION [08/2015 - ] ).

  6. CONNECT NO. 2 FUEL TUBE

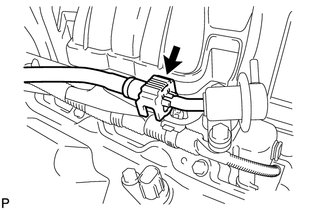

    1. Connect the No. 2 fuel tube to the fuel pressure regulator (Refer to PRECAUTION [08/2015 - ] ).
      GTY604975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL NO. 1 ENGINE COVER SUBASSEMBLY

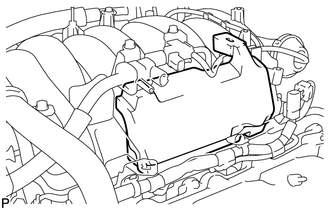

    1. GTY604650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Install the No. 1 engine cover subassembly.

  8. INSTALL NO. 3 ENGINE COVER

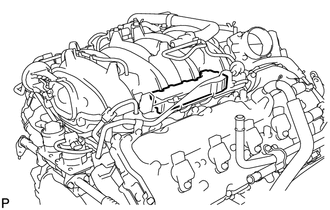

    1. GTY548421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Install the No. 3 engine cover.

  9. INSTALL AIR CLEANER HOSE ASSEMBLY

    Refer to PROCEDURE - Step 10

  10. INSTALL V-BANK COVER SUBASSEMBLY

    Refer to PROCEDURE - Step 46

  11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  12. INSPECT FOR FUEL LEAK
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG) and Techstream main switch on.
      NOTE:

      Do not start the engine.

    3. Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the Fuel Pump / Speed.
    4. Check that there are no fuel leaks after doing maintenance anywhere on the fuel system.
